Youfa Factory Building Scaffolding System Formwork Telescopic Steel Support Adjustable Scaffold Steel Floor Shoring Props Jack

Quick Details

• hole distance：

  125 mm
• Warranty：

  1 Year
• Place of Origin：

  Tianjin, China
• Value Core Material：

  Q195, Q215, Q235, Q345
• Selling Units：

  Single item
• Packaging Details：

  packed in bundle or according to clients requirement
• Port of dispatch：

  Xingang
• Inspection：

  By SGS and by our QC department
• Project Solution Capability：

  NONE
• Design Style：

  Modern
• Model Number：

  scaffolding steel props
• type：

  heavy duty or light duty
• After-sale Service：

  Online technical support, Other
• Supply Ability：

  50000 pieces per Month
• hole amount：

  18 - 20 pcs
• Surface：

  painted, galvanized, powder coated
• certification：

  BV certification
• Brand Name：

  YouFa Group
• Thickness：

  1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm
• Type：

  Steel prop
• Outer tube：

  48mm, 56mm, 60mm
• Application：

  Outdoor
• Inner tube：

  40mm, 48mm

Product Description

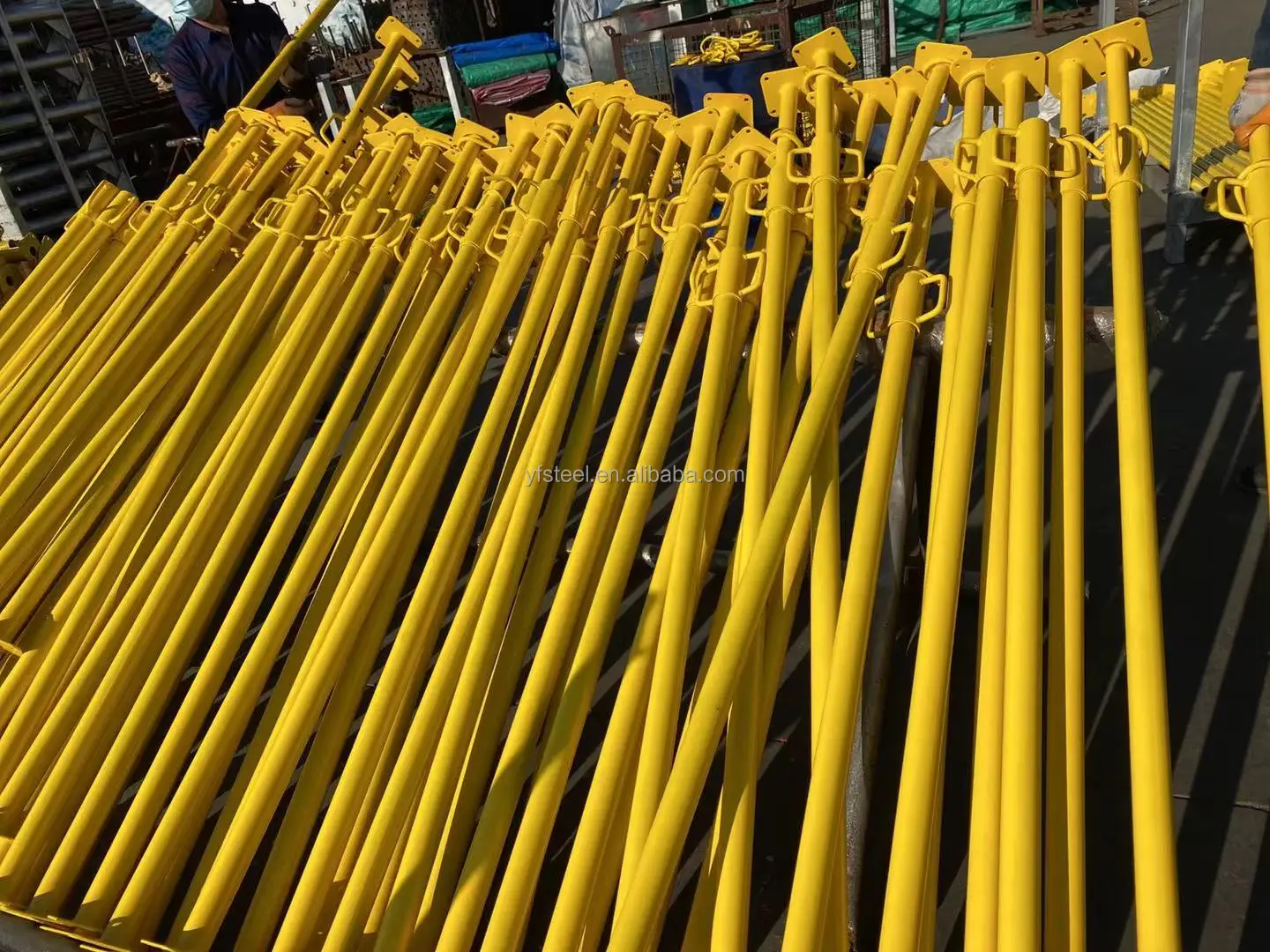

Youfa factory building scaffolding system Formwork Telescopic Steel Support Adjustable Scaffold Steel Floor Shoring Props Jack

Adjustable steel supported roof is an ideal supporting equipment for construction projects such as buildings, mines, tunnels, Bridges and culverts. It has the advantages of stable performance, free height adjustment, repeated use, simple structure and convenient support. Method of use of adjustable steel roof 1. Swing the adjusting nut to the lowest position with the handle first. 2. Insert the upper tube into the lower tube to near the desired height and then insert the pin into the adjustment hole located above the adjustment nut. 3. Move the adjustable steel support top to the working position, and rotate the adjusting nut with the handle to make the adjustable support top fix the supported object.

Specification

item	adjusted steel prop
Type	steel prop
Warranty	1 Year
Application	Outdoor
Design Style	Chinese
Place of Origin	China
	Tianjin
Brand Name	YouFa Group
Model Number	scaffolding steel props
Value Core Material	Q195, Q215, Q235, Q345
Thickness	1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm
hole distance	125 mm
hole amount	18 - 20 pcs
Surface	painted, galvanized, powder coated
Inspection	By SGS and by our QC department
certification	BV certification
Outer tube	48mm, 56mm, 60mm
Inner tube	40mm, 48mm
type	heavy duty or light duty

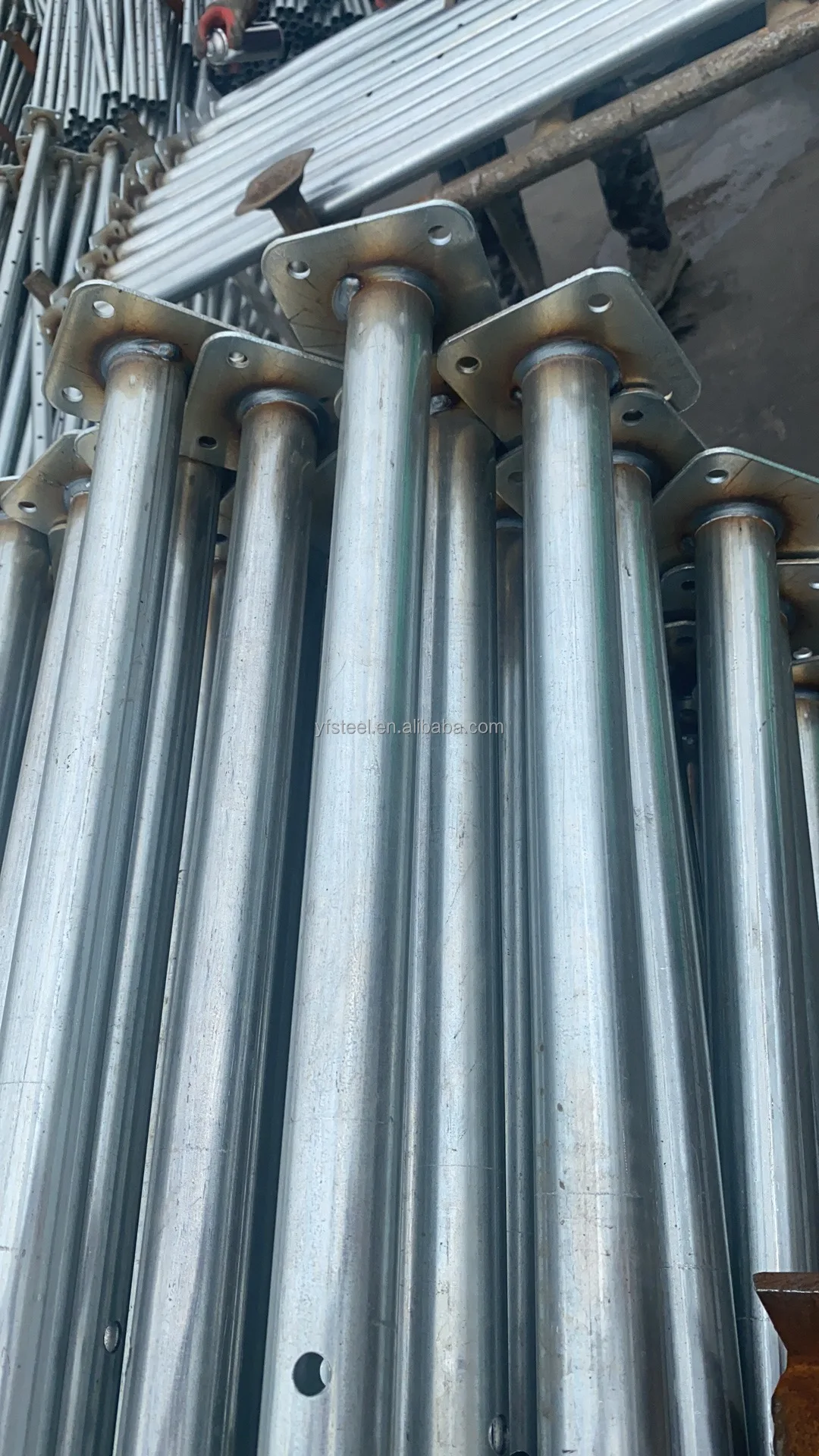

Heavy Duty Prop(With Normal Nut）
Tube diameter	48/60mm
Tube thickness	1.6mm-2.5mm
Plate	120*120*5/6mm
Length	1.6-2.9m/1.8-3.2m/2.0-3.5m/2.0-3.6m/2.2-4m/3.0-5.0m/3.5-6m
Plate type	suqare plate or flower plate
Surface finished	painted, powder coated, galvanized
Packing	1500pcs/ 20FT container

Light Duty Prop(With Cup Nut)
Tube diameter	40-48mm or 48-56mm
Tube thickness	1.6mm-2.5mm
Plate	120*120*5/6mm
Length	0.6-1.1m/0.8-1.4m/1.6-2.9m/1.8-3.2m/2.0-3.6m/2.2-4.0m
Plate type	suqare plate or flower plate
Surface finished	painted, powder coated, galvanized
Packing	2000pcs/ 20FT container

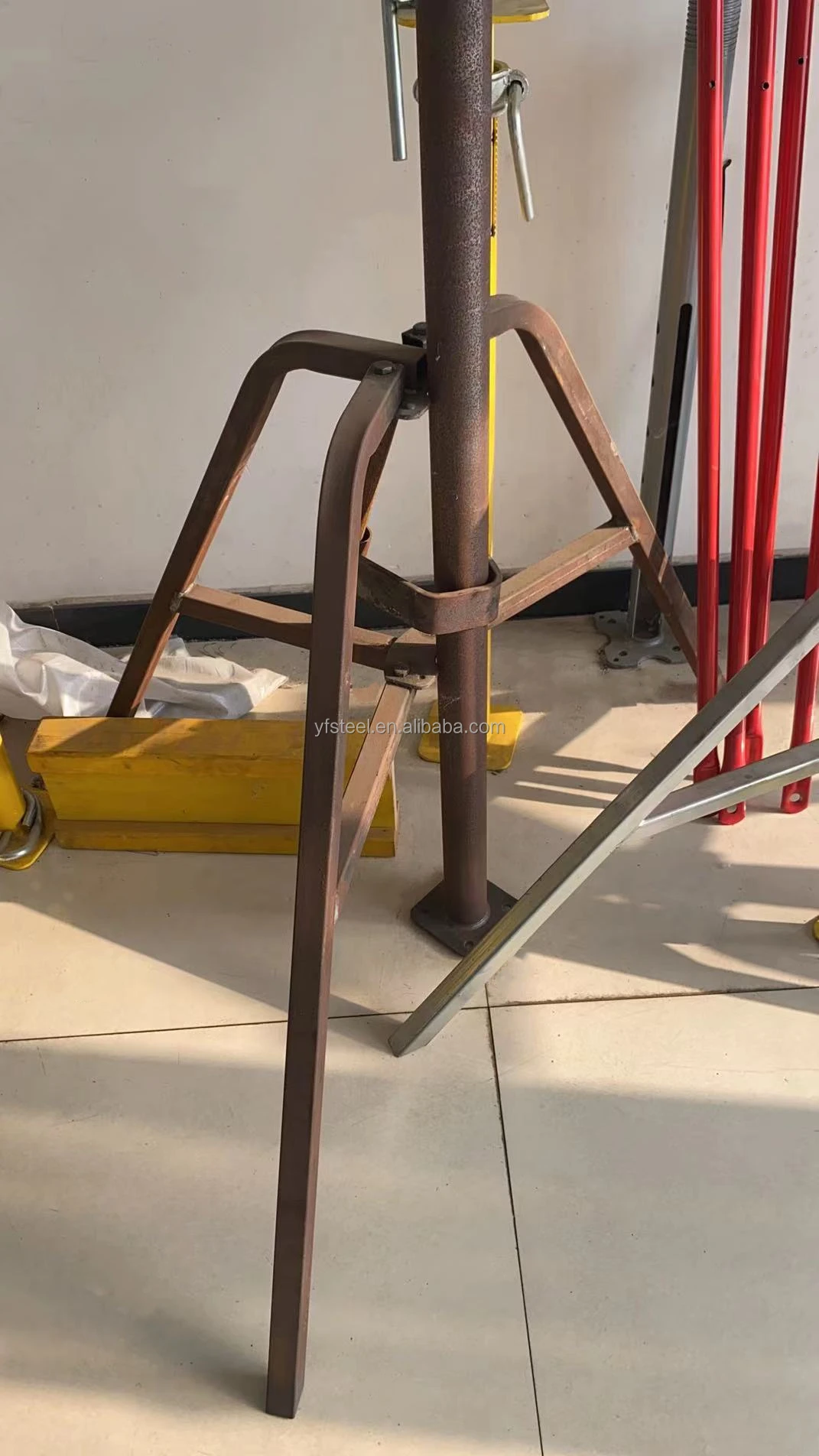

Tripod(Can be customized accordingly）			Tripod(Can be  customized accordingly）
6.8kg	7.45kg	8.4kg

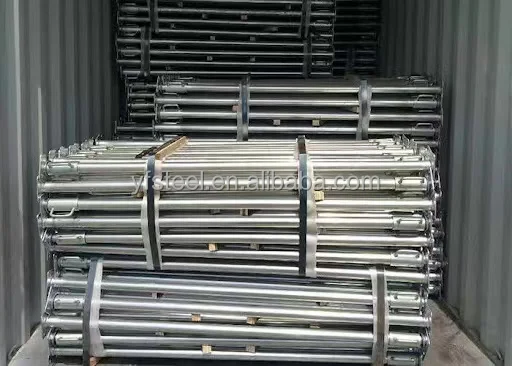

Packing & Delivery

packed in bundle or according to clients requirement
