NBCQ Portable HTHP Consistometer

Payment Terms: TT or LC

Ref Price : 27620.00-27620.00 USD/SET

Supply Capability : 999 SET

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Max.Temperature:
    204℃
  • Max.Working Pressure:
    150MPa
  • Input Voltage:
    AC100-110V 60Hz/220V 50Hz
  • Input Power:
    3500W
  • Mass:
    124kg
  • Heater Power:
    3000W
  • Rotation Speed:
    150±15rpm
  • Dimensions (W*D*H):
    69*44*59cm

NBCQ Portable HTHP Consistometer


>> The large-size touch screen is designed to display and record test data and curve graph clearly.

>> The instrument has a USB port and an Ethernet port used to connect to a computer, making it easy to save and view test data and curve graphs.

>> Cast-aluminum chiller can cool the instrument much more rapidly.

>> The tee high-pressure filter makes it more convenient for users to assemble and disassemble the filter element; users can also clean it more easily.

>> Optimized potentiometer increases accuracy and durability, improving convenience of calibration and cleaning.
>> Users can set alarm values for multiple parameters as needed.

>> High-quality components

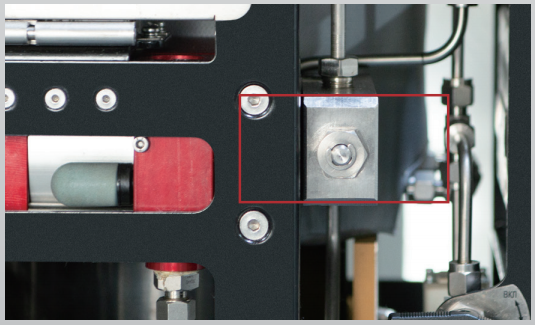

>> Considerate Design for High-pressure Filter.



The instrument uses a tee high-pressure filter. Users can assemble and disassemble the filter element with a small wrench by one hand; users can also clean it more easily.

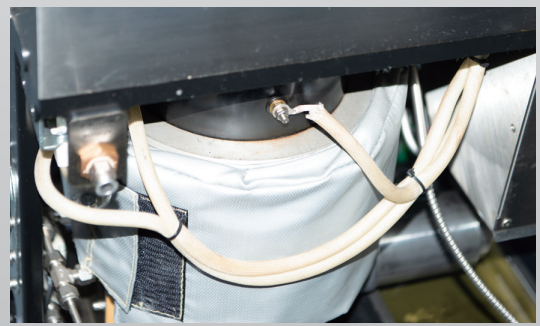

>> Faster Cooling



The instrument uses a cast-aluminum chiller with faster heat dissipation and larger contact area, so it can cool down much more rapidly.



>> Optimized Potentiometer Increases Accuracy and Durability.

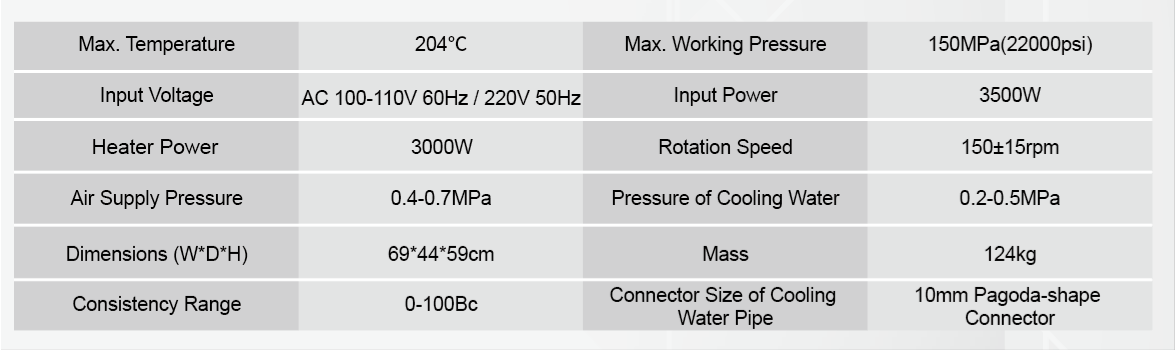

>> Specifications





Related Parts



 Quality-oriented, Easily Operated
 www.nithons.com

Sino-Japanese joint venture Tianjin Nithons Technology Co., Ltd. was established in 2013, focusing on the research and development, manufacturing, sales and after-sales service of a new generation of oil cementing testing instruments and related accessories. It is a scientific and technological innovation enterprise with independent intellectual property rights. High-tech enterprise certificate. The company provides the selection and ordering of oil cementing testing instruments and personalized instrument customization services, providing professional and reliable solutions for material testing and analysis in the field of oil cementing engineering, making research and development simpler, more intelligent testing and safer construction. The company is located in Tianjin Universal Enterprise Park Industrial Park, with a 2000 square meter production workshop, strict manufacturing process, debugging and quality control process to ensure stable and reliable quality.

The main products of Nithons include constant speed mixer, thermostat water bath, high temperature and high pressure curing chamber, atmospheric consistometer, high temperature and high pressure consistometer, portable consistometer, high temperature and high pressure stirred fluid loss cell, high temperature and high pressure fluid loss cell, rotational viscometer, compressive strength tester, ultrasonic compressive strength tester, anti-channeling instrument, etc.. It covers the testing instruments and related parts of the whole process of cementing construction, such as preparation, maintenance, thickening, water loss, rheology, compressive strength, gel strength and gas channeling prevention, taking into account the function and cost to meet the diversified needs. It can provide personalized customization and upgrading services for old instruments, as well as integrated cementing mobile laboratories for customers. The company's products focus on automation design, not only focus on improving the user's operating experience, but also take into account the versatility with traditional instruments and parts, is a good choice for upgrading oil cementing testing instruments.
