Hot Sale Formwork Steel Prop Jack Adjustable Steel Prop Metal Shoring Prop

Quick Details

• hole distance：

  125 mm
• Warranty：

  1 Year
• Place of Origin：

  Tianjin, China
• Selling Units：

  Single item
• Color：

  Customer Requirements
• Single package size：

  200X2X200 cm
• Material：

  Q195 / Q235 / Q345
• Project Solution Capability：

  Others
• Design Style：

  Modern
• After-sale Service：

  Online technical support, Other
• Payment terms：

  TT LC
• Surface treatment：

  painted, galvanized, powder coated
• Brand Name：

  YouFa
• Thickness：

  1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm
• Type：

  Adjustable steel prop
• Single gross weight：

  14.125 KG
• Outer tube：

  48mm, 56mm, 60mm
• Application：

  Outdoor and Indoor
• Inner tube：

  40mm, 48mm

Product Description

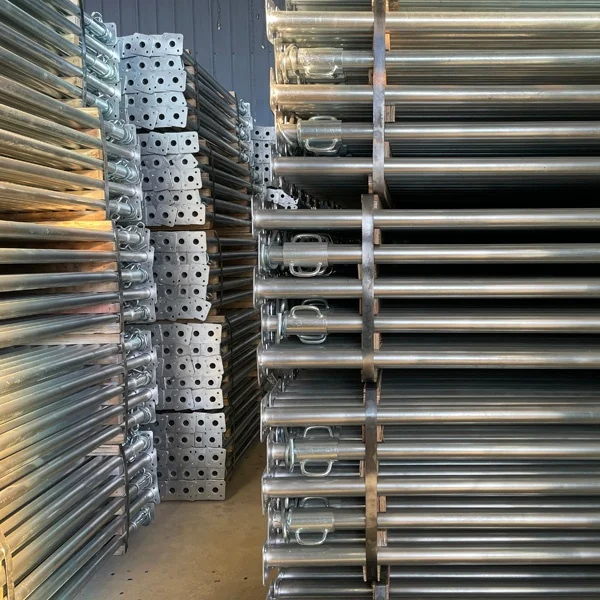

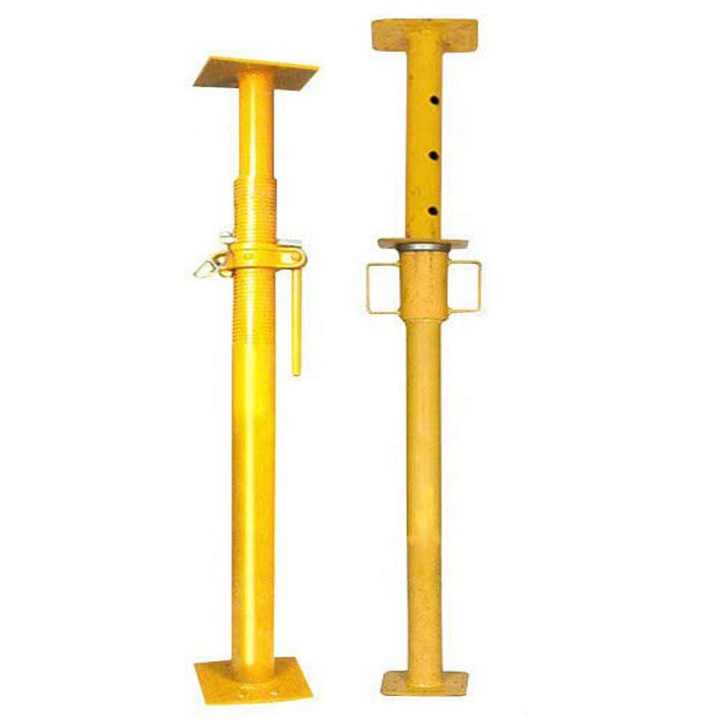

steel props

Adjustable Height Prop is for shoring with level plate on construction.
Four type steel props are available, such as Spanish Prop, Italian Prop. Middle East Prop and Push-pull Prop.
Normal widely used in multi construction and building.
In order to suit the project and environment, painted or galvanized surface can be provided, various & reasonable length is
available, and with the option of the cup nut or sleeve, on iron or cast iron, or with the External thread or internal.
The props are usually used.
To support slab formwork.
To cater for different widths between walls.
To support concrete beams
Prop Advantage:
Long using time.
Recycling and Cycle use.
use simply
Normal characteristic strength for prop: 20.4kN to 51.0kN
Standard: EN 1065:1998

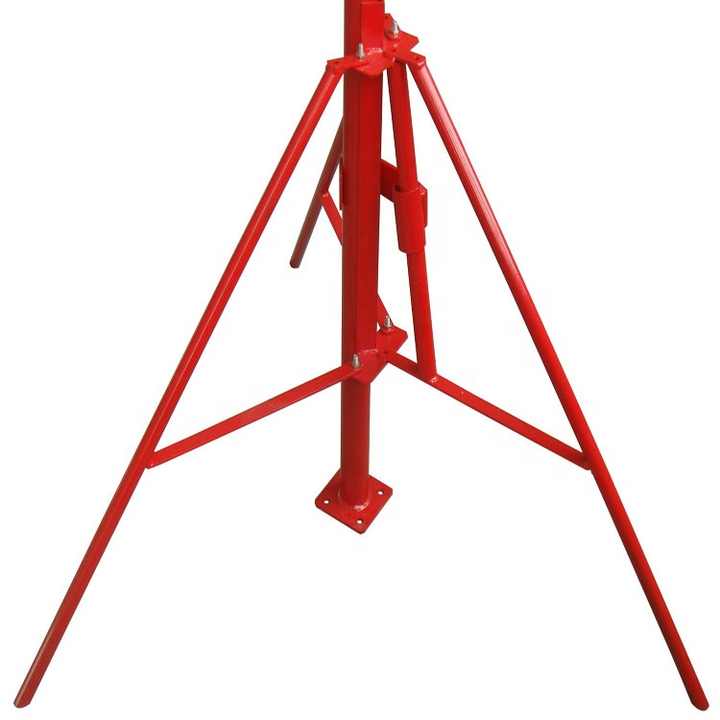

Tripod

Tripods can be fitted with steel props, scaffolding.

Surface treatment:Painted,electro galvanized

Supporting height:680/800mm
Material:Q235

Specification

Heavy Duty Prop(With Normal Nut）
Tube diameter	48/60mm
Tube thickness	1.6mm-2.5mm
Plate	120*120*5/6mm
Length	1.6-2.9m/1.8-3.2m/2.0-3.5m/2.0-3.6m/2.2-4m/3.0-5.0m/3.5-6m
Plate type	suqare plate or flower plate
Surface finished	painted, powder coated, galvanized
Packing	1500pcs/ 20FT container

Light Duty Prop(With Cup Nut)
Tube diameter	40-48mm or 48-56mm
Tube thickness	1.6mm-2.5mm
Plate	120*120*5/6mm
Length	0.6-1.1m/0.8-1.4m/1.6-2.9m/1.8-3.2m/2.0-3.6m/2.2-4.0m
Plate type	suqare plate or flower plate
Surface finished	painted, powder coated, galvanized
Packing	2000pcs/ 20FT container

Tripod(Can be customized accordingly）			Tripod(Can be customized accordingly）
6.8kg	7.45kg	8.4kg

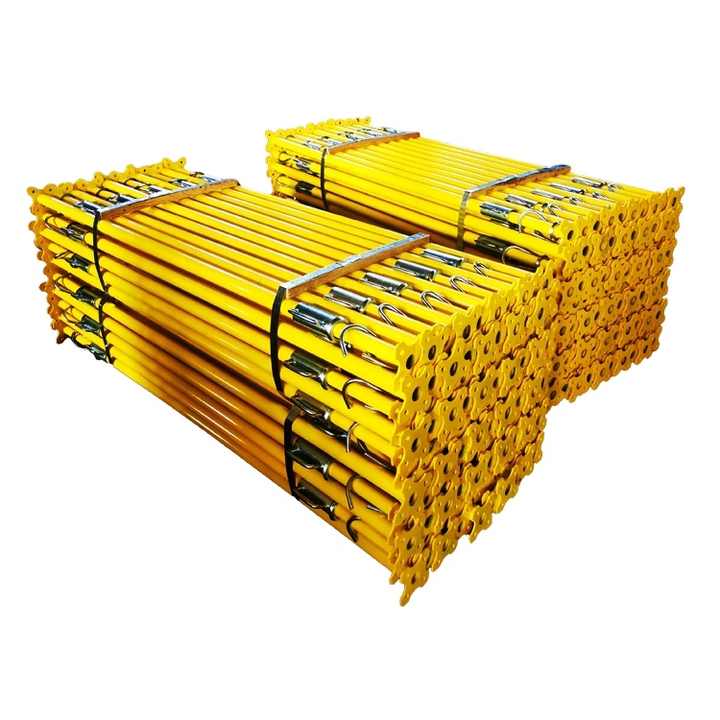

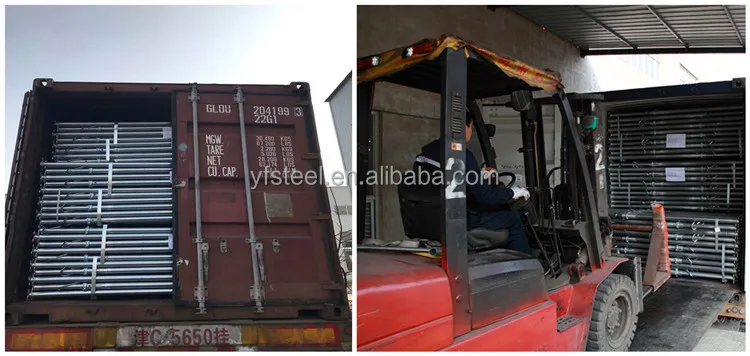

Packing & Delivery

packed in bundle or according to clients requirement
