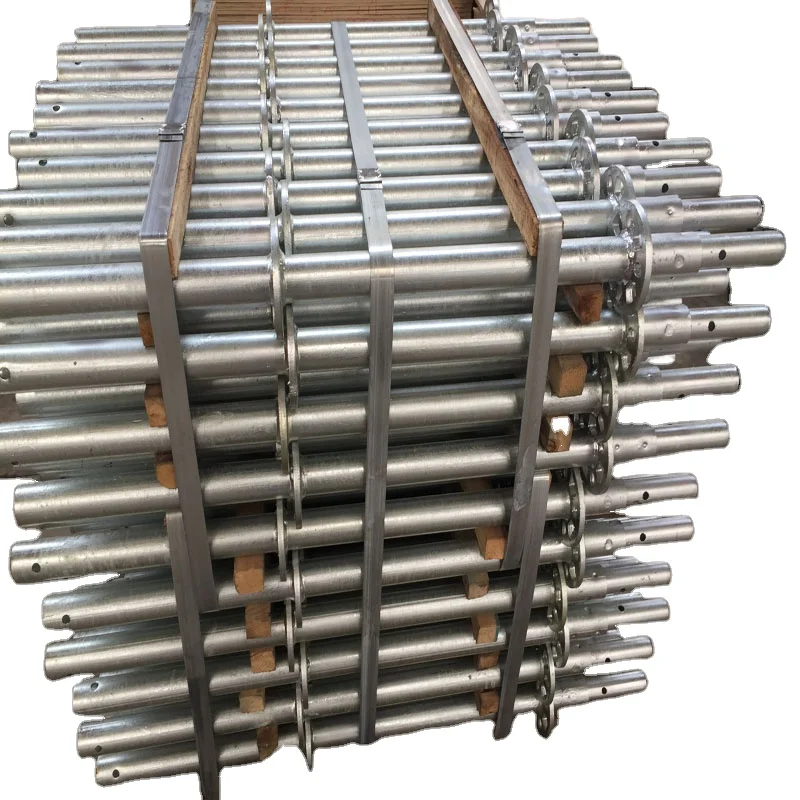

EN 12810 Types of Ringlock Scaffold Galvanized Ringlock Scaffoldings System for Construction

Quick Details

• Warranty：

  1 Year
• Place of Origin：

  China
• Selling Units：

  Single item
• Packaging Details：

  in bundle, steel strip packed large quantity by bulk shipment other package according to customer's requirement
• Port of dispatch：

  Xingang,Tianjin
• Single package size：

  30X4.83X4.83 cm
• Material：

  Q235/Q345
• Standard：

  EN74/BS1139/AS1576
• Project Solution Capability：

  graphic design
• Design Style：

  Modern
• Model Number：

  ringlock scaffolding
• After-sale Service：

  Online technical support, Other
• Supply Ability：

  20000 pieces per Month
• Surface treatment：

  Hot Dip Galvanized Painted
• Brand Name：

  youfa
• Thickness：

  3.25/2.75MM
• Type：

  ringlock scaffolding
• Packing：

  Bundle
• Advantage：

  Easy Assembling
• Product name：

  Ring Lock Scaffolding
• Single gross weight：

  1.700 KG
• Application：

  Building Construction
• Diameter：

  48.3 Mm
• Certificate：

  ISO9001:2008

Product Description

EN 12810 types of ringlock scaffold galvanized  ringlock  scaffoldings system for construction

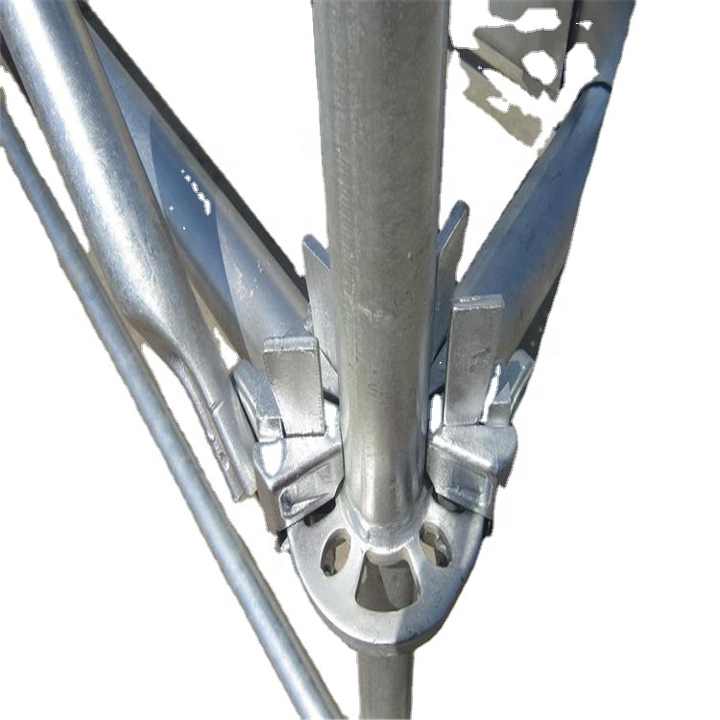

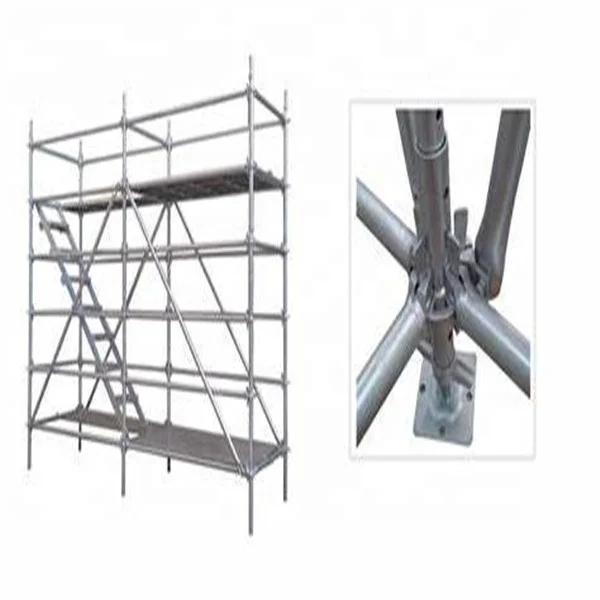

Ringlock scaffold is a new type of scaffolding, also called chrysanthemum disc type scaffolding system, scaffold system, wheel scaffold system, fastener scaffold, layher frame (rhea, layer frame, frame, because the scaffolding is the basic principle of the German layher invention (real) company, has been in the industry known as the "real").

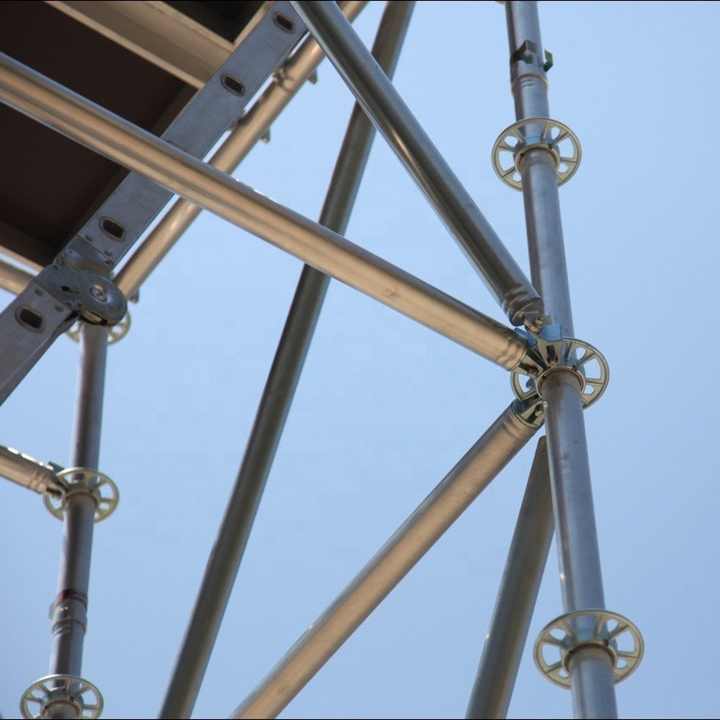

Ringlock scaffolding is the industry standard for modular scaffolding and offers unbeatable durability, simplicity and versatility. Ringlock is the scaffolding of choice globally for residential building, industrial facilities and construction sites.

specification

 The ringlock scaffolding's diameter is usually 48.3 mm;the surface treatment is Hot dip galvanized.

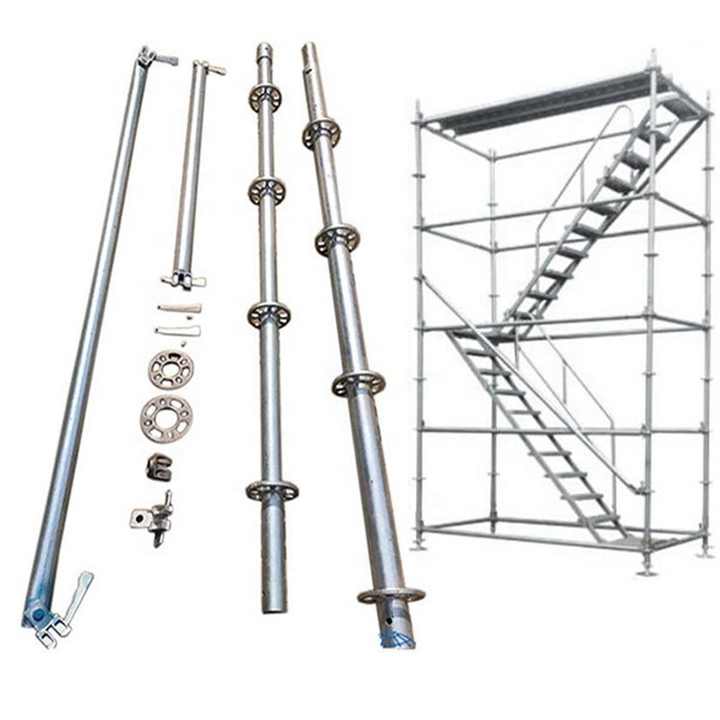

component	picture	materials	Size

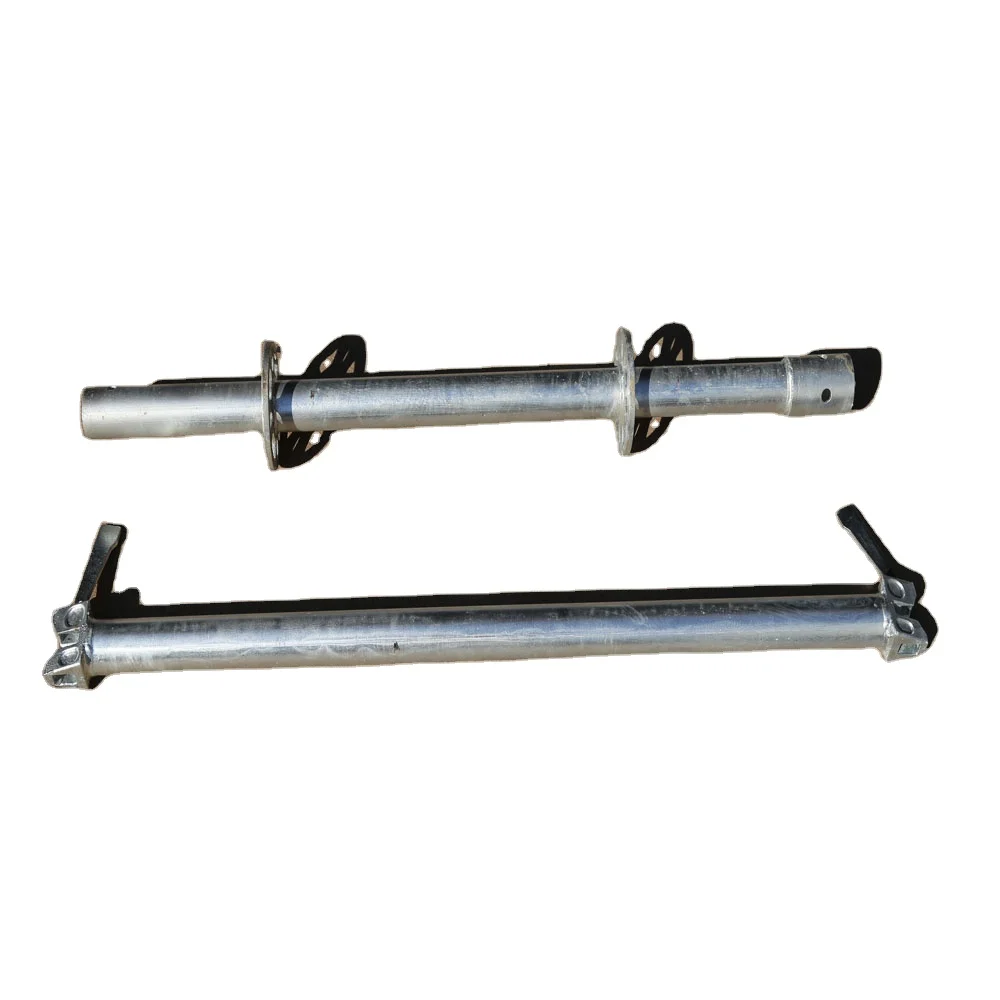

standard		Q345,WT3.25mm	200-3000mm
ledger		Q235,WT2.75mm	500-3000mm
diagonal brace		Q195,WT2.75mm	600*1500mm 900*1500mm 1200*1500mm 1500*1500mm 1800*2000mm 2100*2000mm

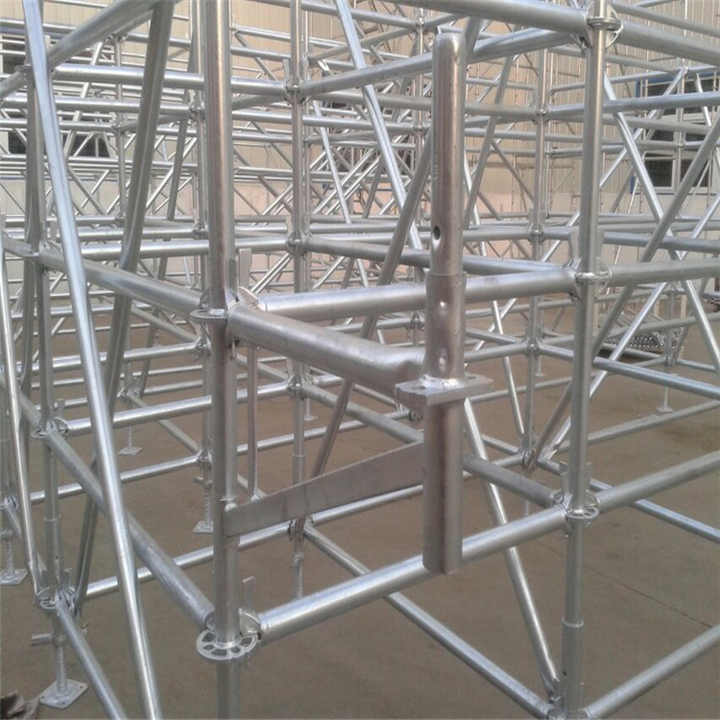

side brackets		48.3*3mm	function:support for extension platfrom
base collar		48.3*3mm	650/880mm

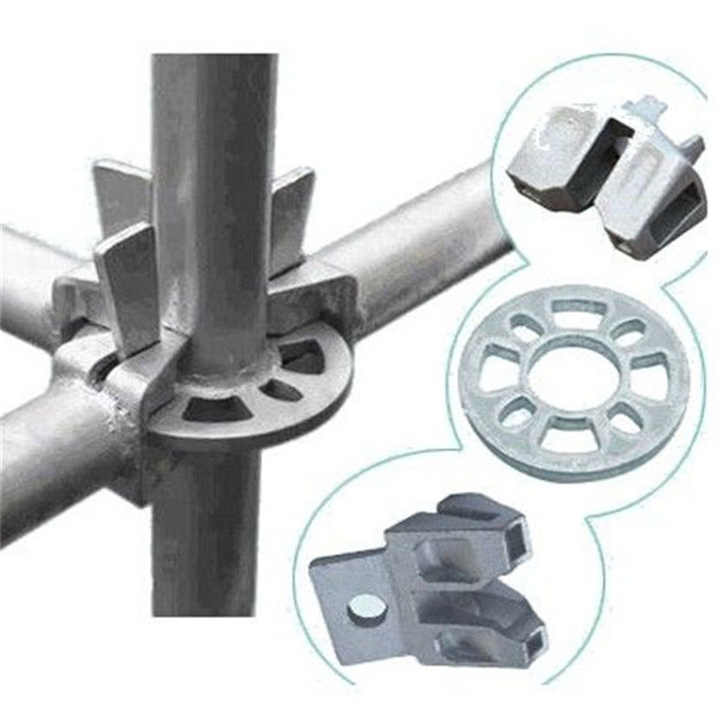

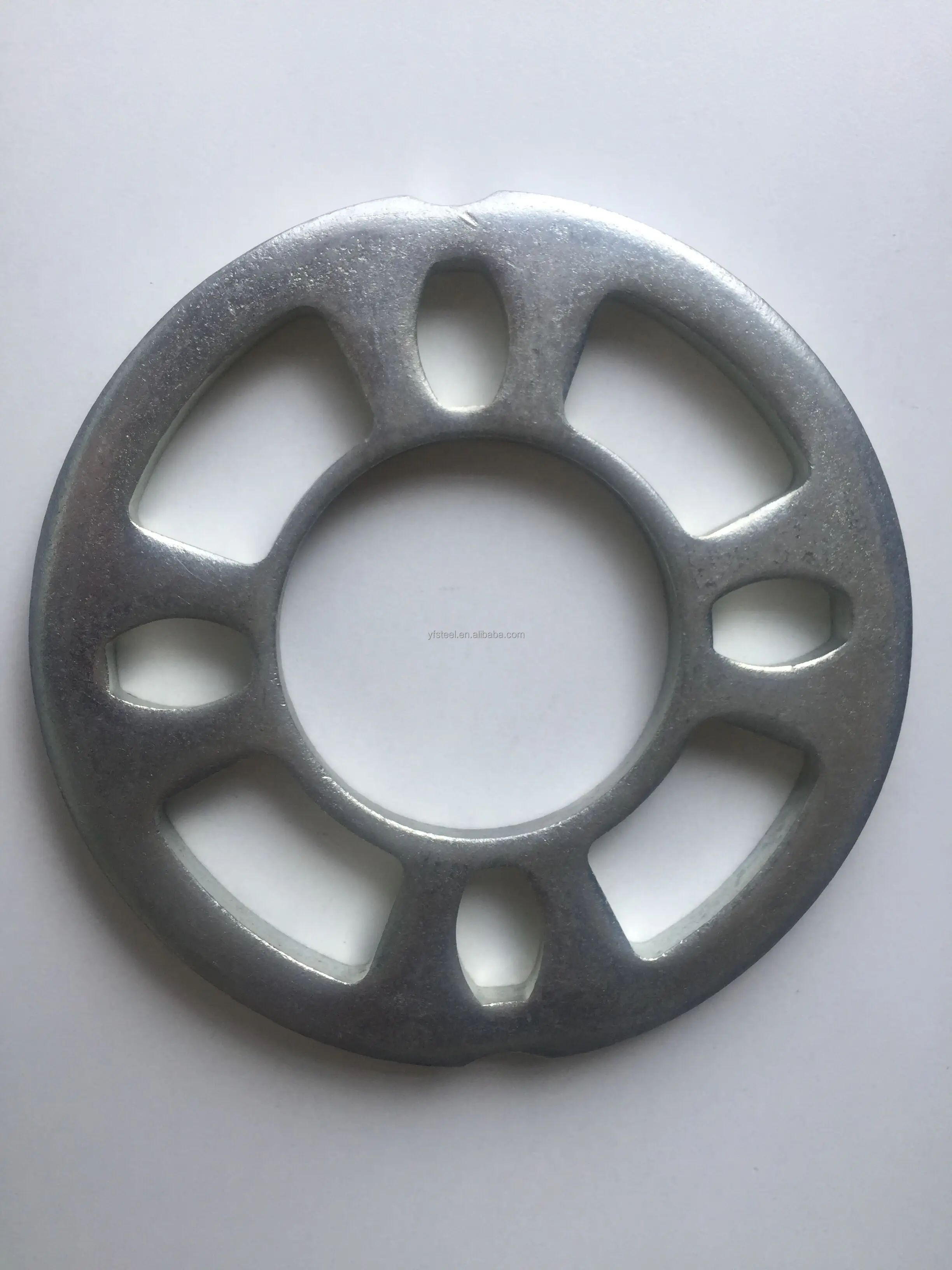

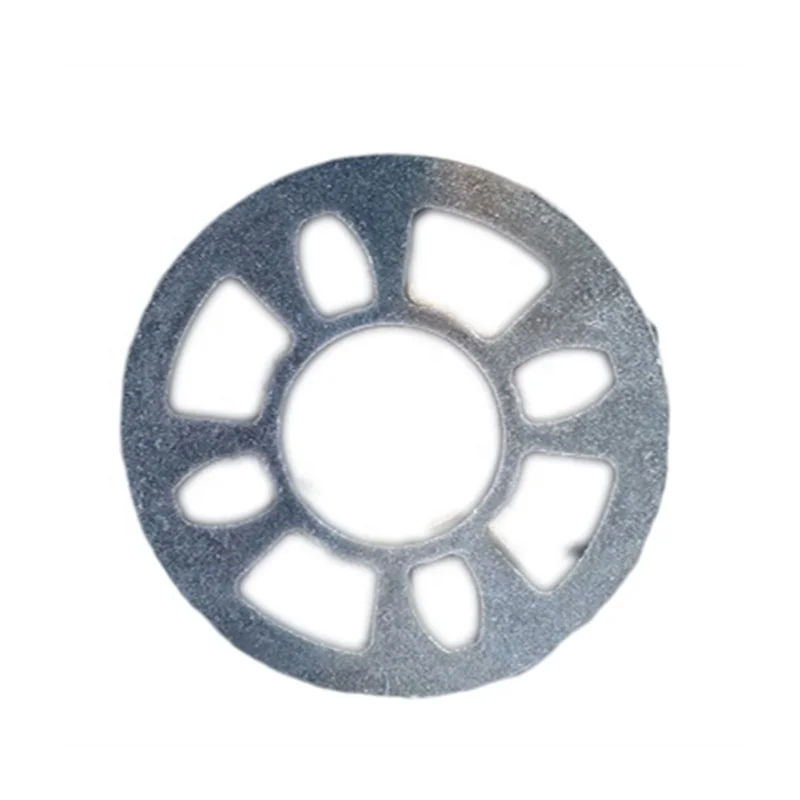

rosette		Q235B/Q355B	Diameter:120-135mm Thickness:9.5-11.75mm

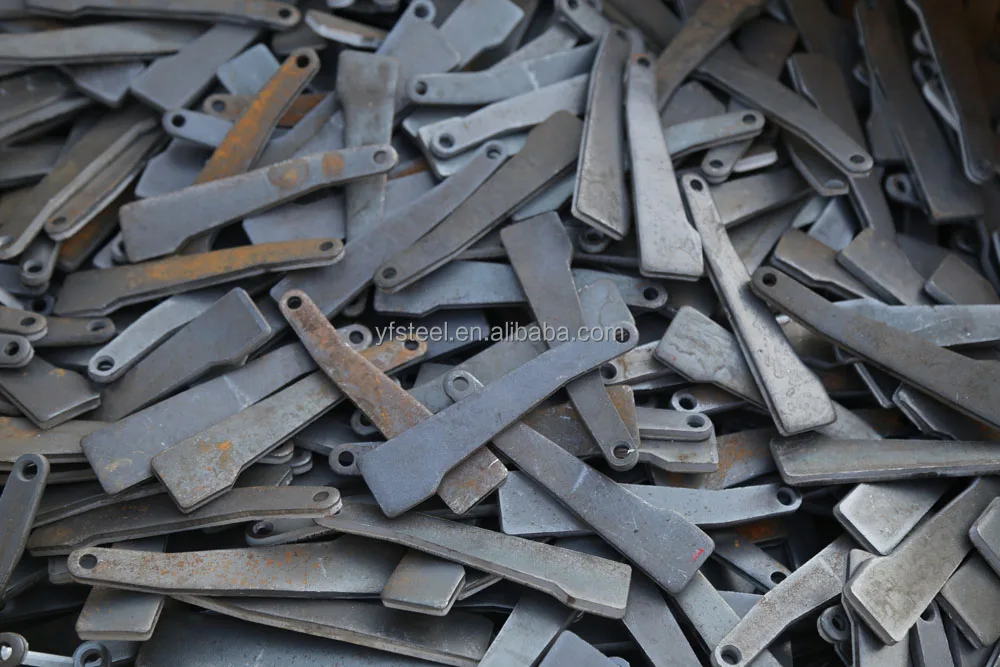

pin/wedge		Q235B/355B	Thickness:5.5-7mm

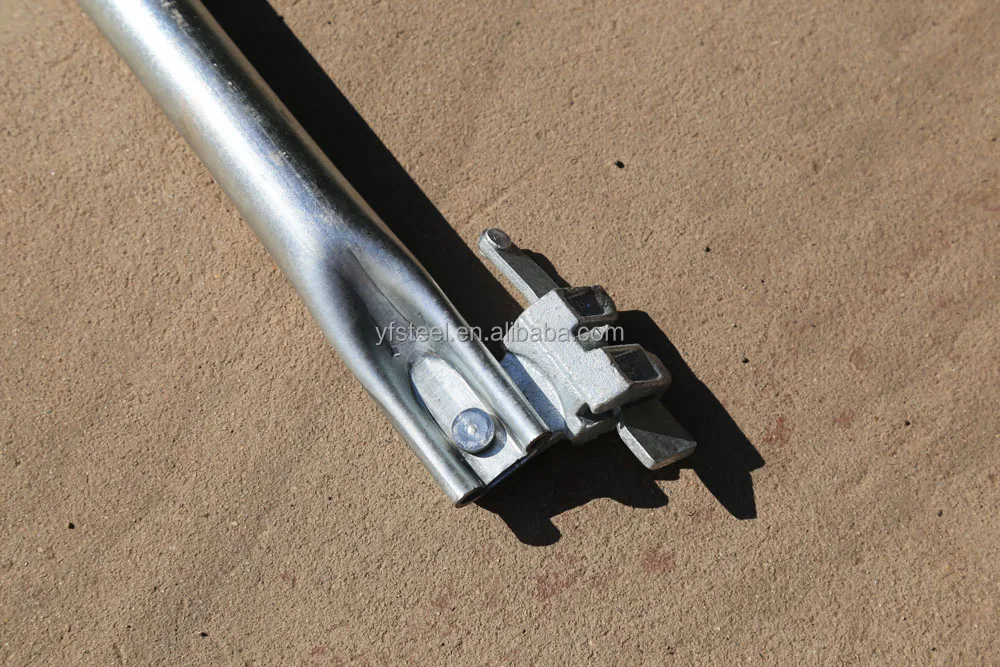

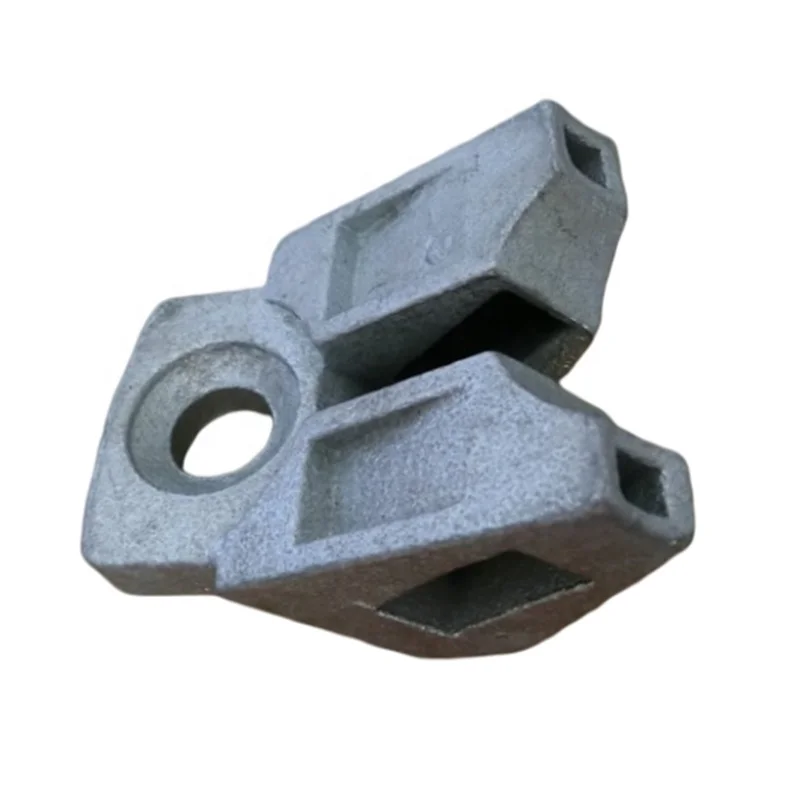

brace end		cast steel:230-450Mpa	Wt:350g/400g

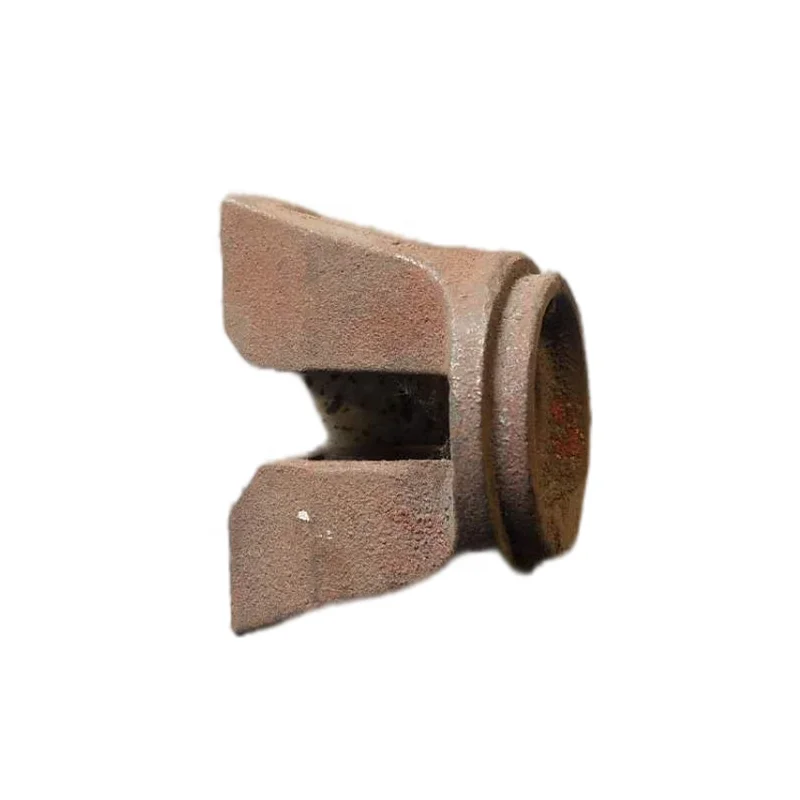

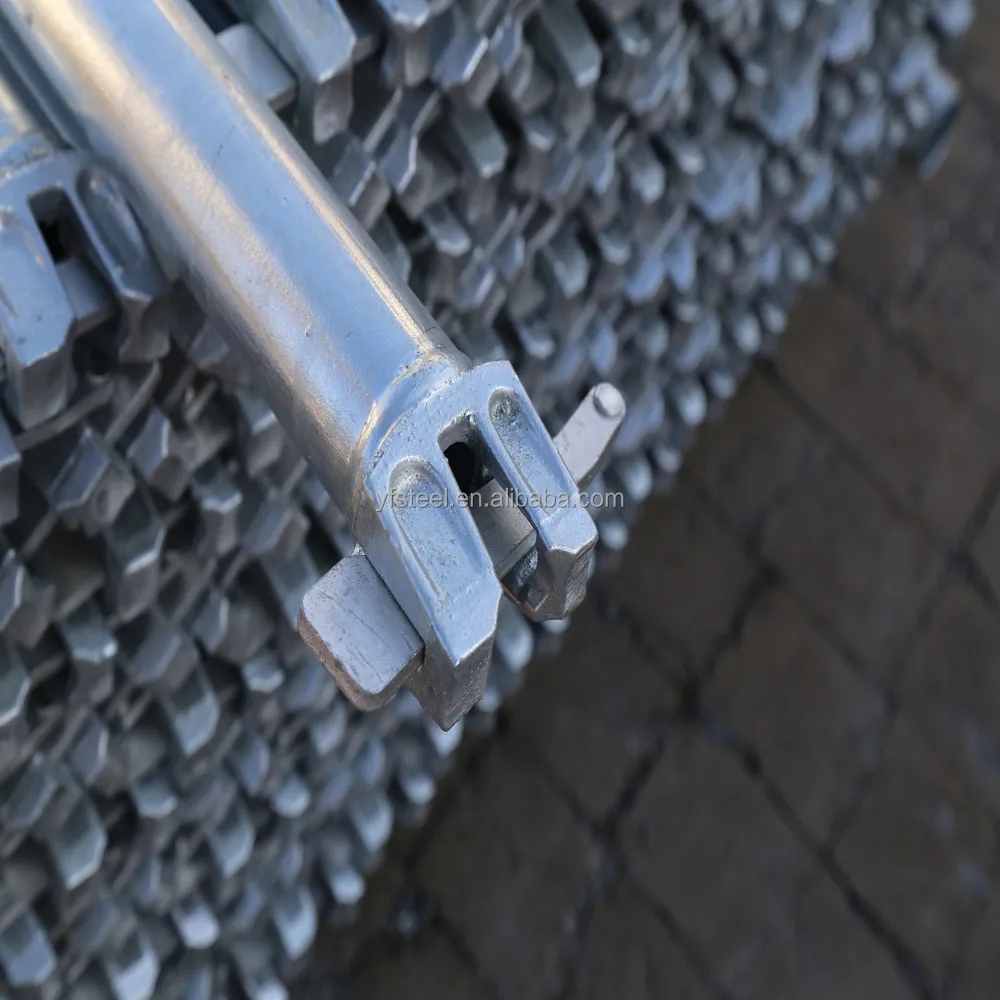

ledger end		cast steel:230-450Mpa	WT:340-420G

Packaging & Shipping

Advantages

Ringlock scaffolding system advantage

SAFE-All components are individually checked on our own laboratory

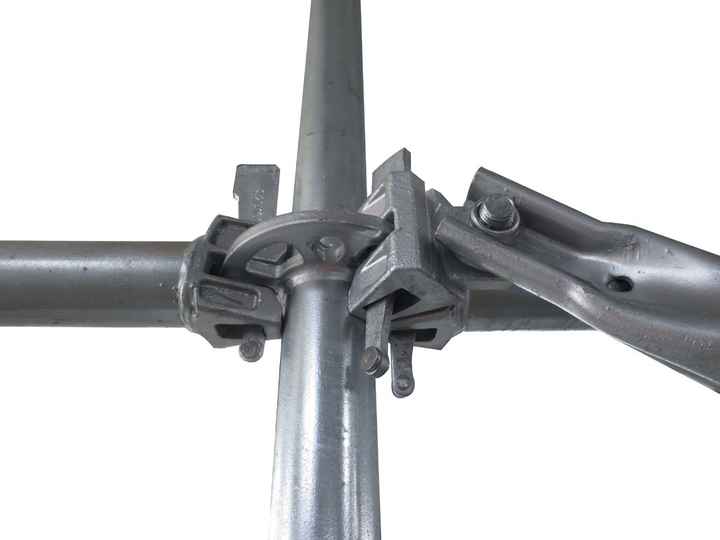

SAEFTY - Verticals are assembled with horizontals and diagonals using secure fixed wedge connections

MULTI- FUNCTIONAL - With the universal joint and fully interchangeable components, the ring system can be used in most construction projects (Civil & Building) for both scaffolding system and access.

ECONOMICAL - Easily assembled system scaffold saves time and labor costs

STRONG-All pipe elements are made of high strength steel

DUBABLE -All components are galvanized and manufactured to international standard

EASILY STORED - Individual pipe elements can be packed in bundles for easy storage and transportation
