CE Certified 2 Inch 16 Gauge Galvanised Steel Pipe 6M Gi Pipe ERW Technique Welding Service for Hydraulic Structure Applications

Quick Details

• Mill location：

  Tianjin China
• Single package size：

  0.1X0.1X0.1 cm
• Standard：

  ASTM
• Invoicing：

  by theoretical weight
• Special Pipe：

  API Pipe, Thick Wall Pipe
• Single gross weight：

  0.200 KG
• Oiled or Non-oiled：

  Non-oiled
• Secondary Or Not：

  Non-secondary
• Place of Origin：

  Tianjin, China
• Selling Units：

  Single item
• Tolerance：

  ±10%
• Grade：

  Q235
• Material：

  Q195 Q215 Q235 Q345 S195T
• we are a：

  manufacturer,producer,factory,mill
• Zinc coating：

  30 microns at minimum
• Processing Service：

  Welding, Punching, Cutting
• Section Shape：

  ROUND
• MOQ：

  one container
• Brand Name：

  YOUFA
• Thickness：

  1.5 - 13.75 mm
• Type：

  Welded Steel Pipe
• Alloy Or Not：

  Non-Alloy
• Advantage：

  Aluminium killed steel available
• Delivery Time：

  22-30 days
• Length：

  6m, 6.4M, 5.8M
• key words：

  galvanis pipa
• Surface Treatment：

  galvanized
• Technique：

  ERW
• Application：

  Fluid Pipe, Gas Pipe, OIL PIPE
• Certificate：

  ce, SNI, sirm, ISO9001

Product Description

COMMODITY NAME	GALVANIZED ROUND SECTION WELDED STEEL PIPE/ TUBE ( GI TUBE/ GI PIPE)
SIZE RANGE	DIAMETER: 21.3MM-610MM ; THICKNESS: 1.0MM--15.0MM
MATERIAL GRADE	Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C
STANDARD	ASTM A53 ( sch10; SCH40),  ASTM A500,  BS1387， EN39， BS1139,  ISO65 GB/T3091, GB/T13793
PIPE SURFACE	GALVANIZED
ZINC COATING	200G/M2 ( OR CUSTOMIZED)
PIPE ENDS	PLAIN ENDS / BEVEL ENDS WITH PLASTIC CAPS/ THREADED BOTH ENDS WITH COUPLING AND CAPS/ GROOVED ENDS
CERTIFICATES	ISO 9001 / BSI/ UL / FM
TRADE TERMS	FOB/ CFR/ CIF/ EXW/ FCA
PAYMENT TERMS	30%&70% T/T ;  100% LC AT SIGHT (others can be negotiated)
DELIVERY TIME	30-45 DAYS AFTER RECEIVE DEPOSIT OR LC
BRAND	YOUFA  (HOT SALES)
HOT SALES MARKET	Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania

Galvanzied Round Steel Pipe Production Capacity:
5 factories producing galvanized steel pipe under Youfa Group until 2021;

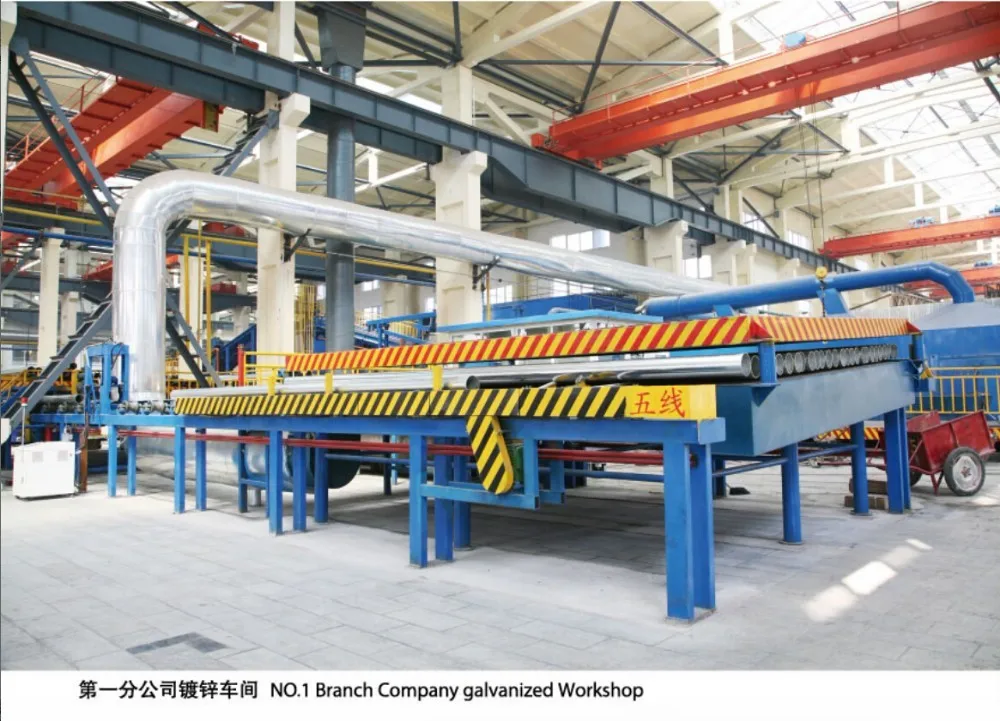

40 hot dipped galvanized steel pipe production lines;
3 national accredited laboratory with CNAS Certificates ;
1 Tianjin government accreditd technology center;

4,240,000 tons annual output of gi pipe;

104,300 tons exported around the world.

High quality Bs1387 Grade 76mm Diameter Hot Dip Galvanized Erw Steel Pipe

ZINC COATING: 200g/m2 or customized(30G/M2 - 500G/M2)

Color painted on Galvanized steel pipe

3PE coated on Galvanized steel pipe

PIPE ENDS TREATMENT

THREADED BOTH ENDS ( BS or ASTM standard)

One end with plastic caps, and the other end with coupling

GROOVED ENDS (BS or ASTM standard)

PLAIN ENDS (regular situation)

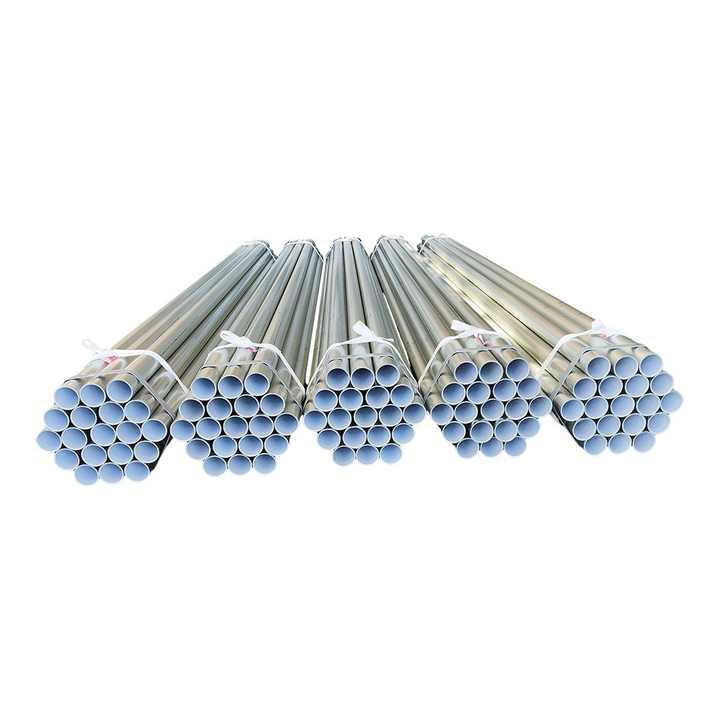

Add plastic caps or not

BEVEL ENDS WITH PLASTIC CAPS

30 degree bevel suitable to welding

OTHER PROCESS ALL CAN BE DISCUSS!

GALVANIZED STEEL PIPE USAGE

Delivery Steel Pipe: Low pressure liquid / water / gas / oil / line pipe,

Fire sprinkler steel pipe,

Structure Steel Pipe: Construction / building materials steel pipe,

Scaffolding pipe,

Solar structure component steel pipe

Fence post steel pipe

Greenhouse frame steel pipe

Specification

DN	OD			ASTM A53 / API 5L / ASTM A795					BS1387 / EN10255
						SCH10S	STD SCH40	SCH80	Light	Medium	Heavy
		MM	INCH	MM	MM	MM	MM	MM	MM
15	21.3	1/2"	2.11	2.77	3.73	2	2.6	-
20	26.7	3/4“	2.11	2.87	3.91	2.3	2.6	3.2
25	33.4	1"	2.77	3.38	4.55	2.6	3.2	4
32	42.2	1-1/4"	2.77	3.56	4.85	2.6	3.2	4
40	48.3	1-1/2"	2.77	3.68	5.08	2.9	3.2	4
50	60.3	2"	2.77	3.91	5.54	2.9	3.6	4.5
65	73 or 76	2-1/2"	3.05	5.16	7.01	3.2	3.6	4.5
80	88.9	3"	3.05	5.49	7.62	3.2	4	5.0
90	101.6	3-1/2"	3.05	5.74	8.08
100	114.3	4"	3.05	6.02	8.56	3.6	4.5	5.4
125	141.3	5"	3.4	6.55	9.53		5.0	5.4
150	168.3	6"	3.4	7.11	10.97		5.0	5.4
200	219.1	8"	3.76	8.18	12.7
250	273.1	10"	4.19	9.27	15.09

Packing & Delivery

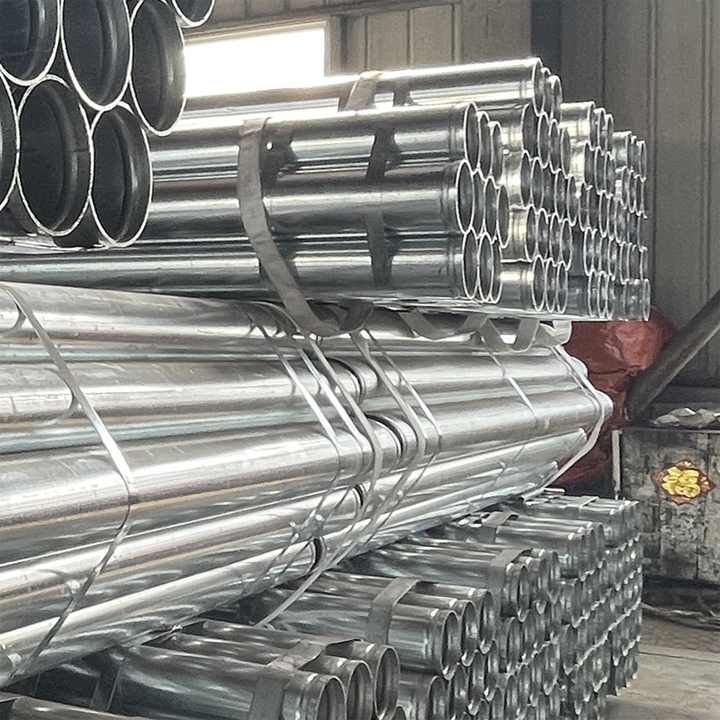

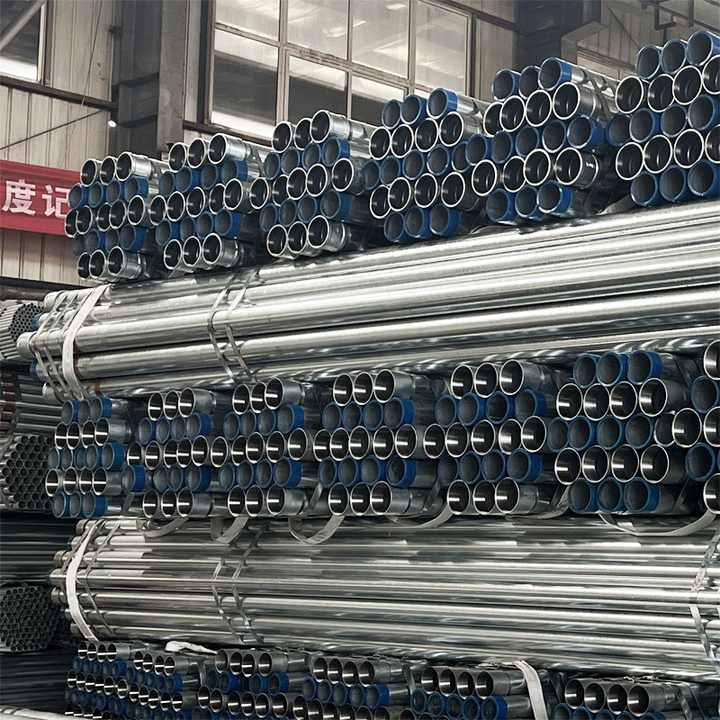

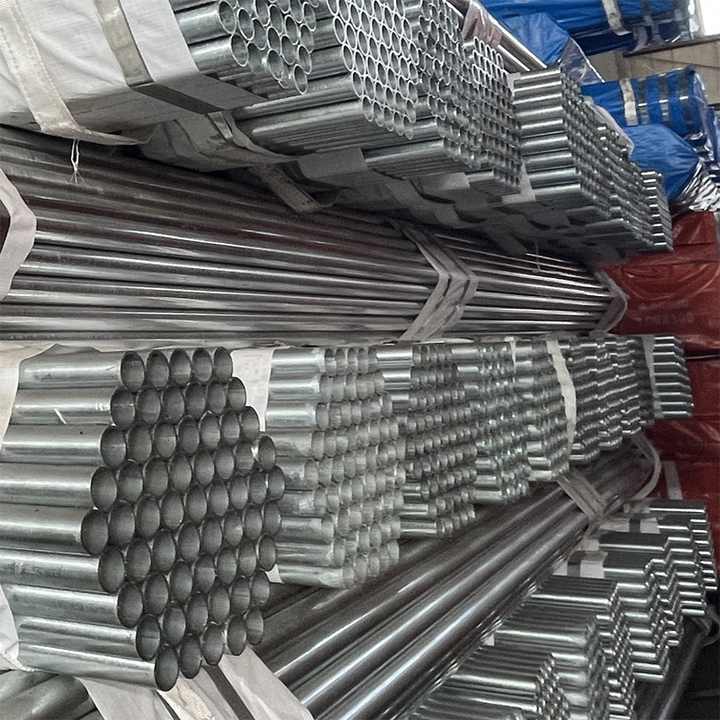

PACKING AND DELIVERY: -- Round hollow section pipe

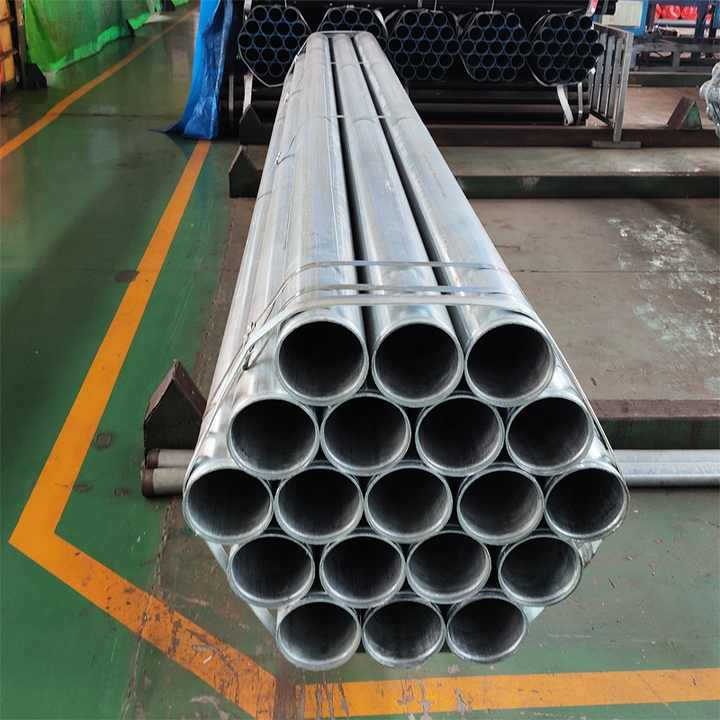

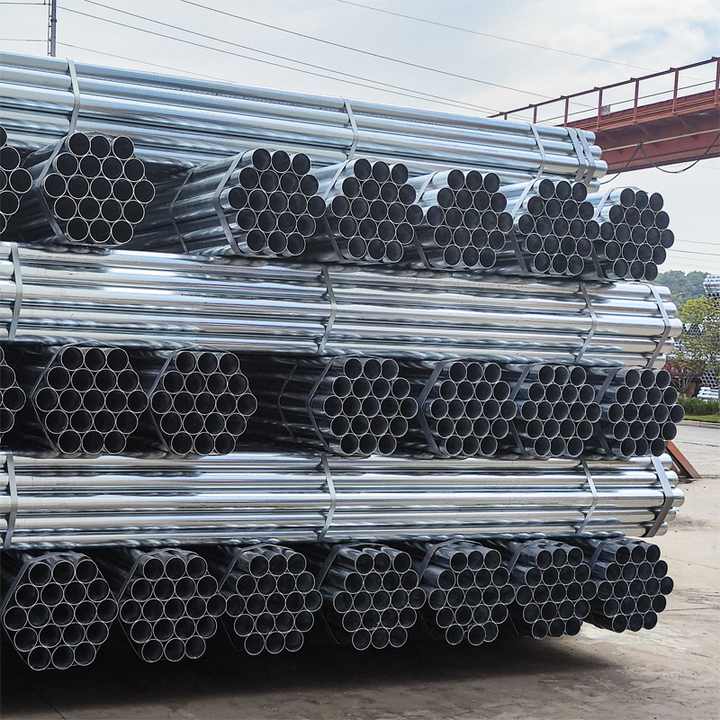

1. OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 219mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.

Company Profile

00:26

00:45

TIANJIN YOUFA STEEL PIPE GROUP CO LTD.
Tianjin Youfa steel pipe group have been rated as top 500 enterprises of China in the same industry,and as top 500 manufacturing of china.In 2012, Youfa group was rank No.375 in top 500 enterprises of china, and No.200 in top 500 manufacturing of china,and No.3 in top 100 private enterprises of Tianjin.
YouFa brand steel pipes have been successfully applied to Three George Project, Pudong International Airport, Capital
International Airport, Beijing Olympic Stadium, Shanghai World Expo Exhibition Hall,Jiaozhou Bay Cross-sea Bridge, the tallest building in China-117 Building in Tianjin, Tian'anmen Parade Reviewing Stand, Shanghai Disneyland Park and other national priority projects.YouFa has been recognized as No.1 brand in the industry.

YOUFA STEEL PIPE GROUP including 13 factories:

Tianjin Production Base—Tianjin Youfa Steel Pipe Group Co.,Ltd .-No.1 Branch; Tianjin Youfa Steel Pipe Group Co.,Ltd .-No.2 Branch; Tianjin Youfa Dezhong Steel Pipe Co.,Ltd; Tianjin Youfa Pipeline Technology Co.,Ltd; Tianjin Youfa Ruida Traffic Facilities Co.,Ltd;

Tianjin Youfa Stainless Steel Pipe Co., Ltd;

Tianjin Youfa Hongtuo Steel Pipe Manufacture Co., Ltd. Tangshan Production Base— Tangshan Zhengyuan Pipeline Industry Co., Ltd.; Tangshan Youfa Steel Pipe Manufacture Co.,Ltd;

Tangshan Youfa New Type Construction Equipment Co., Ltd. Handan Production Base— Handan Youfa Steel Pipe Co.,Ltd; Shaanxi Production Base—Shaanxi Youfa Steel Pipe Co., Ltd

Jiangsu Production Base— Jiangsu Youfa Steel Pipe Co., Ltd

Youfa Production Capacity:

Totally 13 factories with 9000 employees.
62 ERW steel pipe production lines
40 hot dipped galvanized steel pipe production lines
31 square and rectangular steel pipe production lines
9 SSAW steel pipe production lines
25 steel-plastic complex steel pipe production lines
12 hot galvanized square/rectangular pipe production lines
3 national accredited laboratory with CNAS Certificates
1 Tianjin government accreditd technology center

Youfa Sales Volumn:

(1) China Top 500 Enterprises Industry Leading Brands (2) 21 years experience in manufacturing since 2000. (3) 15 Consecutive Years of The First Production and Sales-- Over 1300,0000 Tons sales and production (4) Export 190thousand tons to over 100 countries. (5) Key Project Supplier---The Capital International Airport, Shanghai Pudong International Airport, the 2008 Olympic Games venues, the Word Expo 2010, etc.

Global Exhibitions And Customers Visit Every Year

Pre-Sales Service

*We can offer one free sample length 20 cm with freight collected, if you want to buy our products and take our price.

Strict Quality Control:

1) During and after production, 4 QC staffs with more than 5 years experience inspect products in random.

2) National accredited laboratory with CNAS certificates

3) Acceptable inspection from third party appointed/paid by buyer, such as SGS, BV.

4) Approved by Malaysia, Indonesia, Singapore, Philippines, Australia, Peru and UK.

After-Sales Service

*Quality/Quantity Claims: The Buyer is entitled to make both quality and quantity claim in writing against the Seller within 90 days after arrival at the port of destination.
